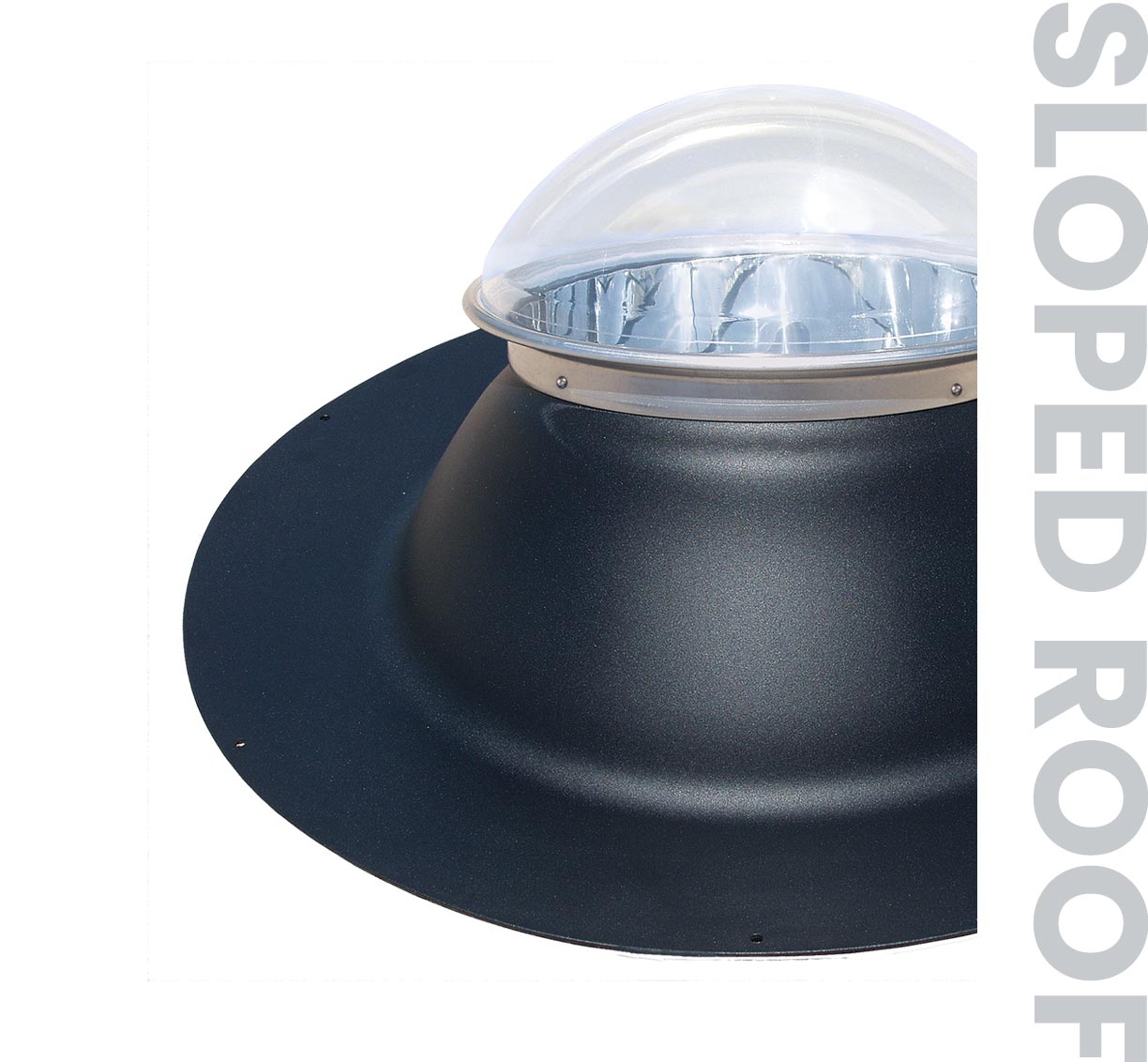

Natural Light pitched roof tubular skylight dome and flashing

For Residential Homes with Sloped Roofs

All our tubular skylights feature all the same quality components but with slight modifications to the flashing to accommodate various roof styles and slopes. Our pitched roof flashing has an angled design to offset the slope of the roof and allow light pipe to stay vertical.

Additionally, our unique forward sloping flashing design limits the use of light robbing elbows. It is constructed of 1100 series, commercial pure grade aluminum with no seams. The flashings round shape minimizes damage to roof shingles and enables it to withstand the stresses of expansion and contraction due to the temperature variations.

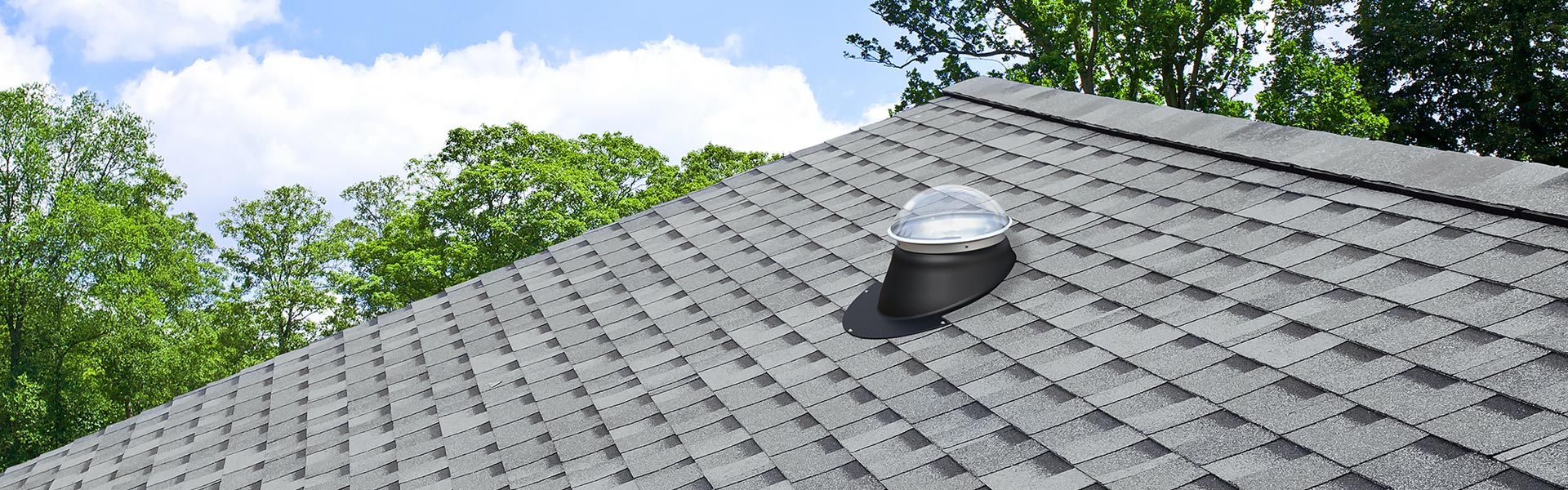

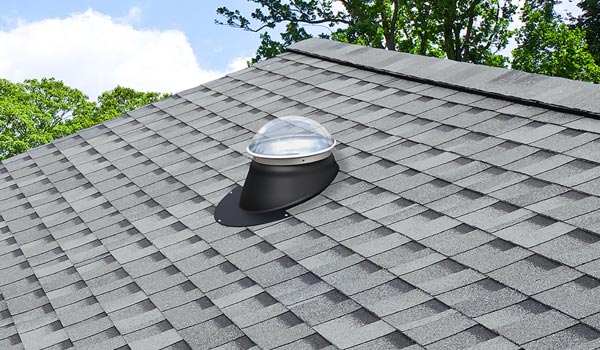

NLES bronze pitched roof tubular skylight installed

Natural Light tubular skylight installed in living room

Two Natural Light tubular skylights installed on steep pitched roof

Natural Light residential tubular skylight installed in pantry

NLES bronze pitched roof tubular skylight installed thumb

Natural Light tubular skylight installed in lving room thumb

Two Natural Light tubular skylights installed on steep pitched roof thumb

RESIDENTIAL

Pitched Roof Tubular Skylight

10" | 13" | 18" Models

Pitched Roof Model Overview

Attaches directly to the roof decking
Designed for residential pitched roofs 2:12 and steeper
Installs easily with no structural changes or wiring required
Performs optimally from sunup to sundown
Disperses light evenly while blocking 99% of harmful UV rays
Condensation release dome prevents fogging due to humidity
Aluminum housing is powder coated both inside and out to prevent corrosion
Available in 3 colors: Black satin, bronze gloss or mill finish

Manufactured using Quality Components more about Components

High Impact Acrylic Dome - with stress collar to prevent dome from cracking under temperature fluctuations
Commercial Grade Aluminum Flashing - heavy duty, seamless, and leakproof
Light Pipe - silver coated aluminum, 98% total reflectivity
Diffuser - choice of 4 styles to disperse light evenly without hot spots or glare
White Aluminum Ceiling Trim Ring - attractive, blends into any home decor

Available Accessories see Accessories

Vent Kit (10" only)
Dimmer Kit
Solar LED Light Kit
Electric Light Kit

Angle Adapters
Extra Light Pipe Sections
Turret Extension (10" & 13" only)
Tile Skirt

Pitched Roof Model Specs

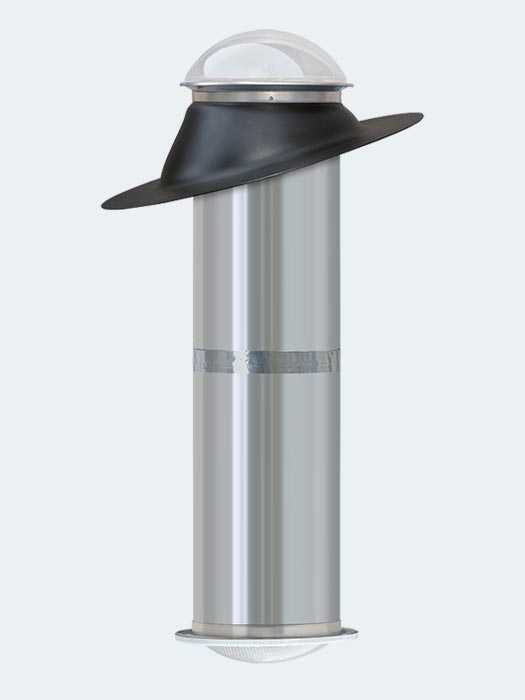

Natural Light 10 inch pitched roof tubular skylight model

10" Kit

Model #:	10KPF
Coverage:	up to 150 sf
Wattage:	up to 300 sf
Kit Height:	4 feet
Max Length:	18 feet
Roof Slope:	2:12 & up
Colors:	⬤⬤

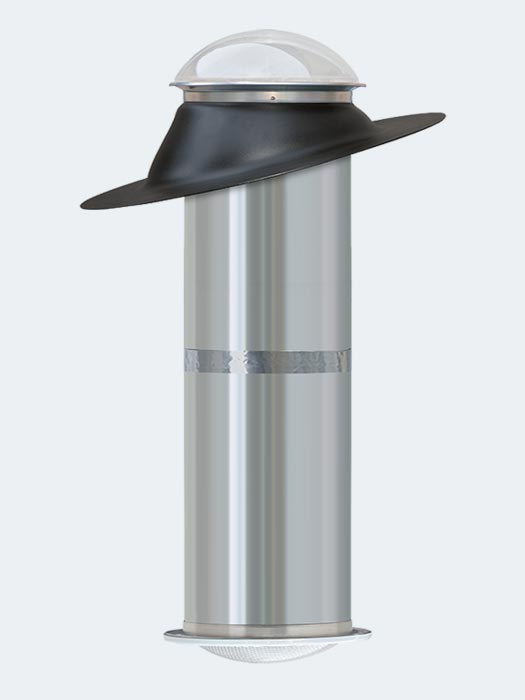

Natural Light 13 inch pitched roof tubular skylight model

13" Kit

Model #:	13KPF
Coverage:	up to 300 sf
Wattage:	up to 500 sf
Kit Height:	4 feet
Max Length:	20 feet
Roof Slope:	2:12 & up
Colors:	⬤⬤

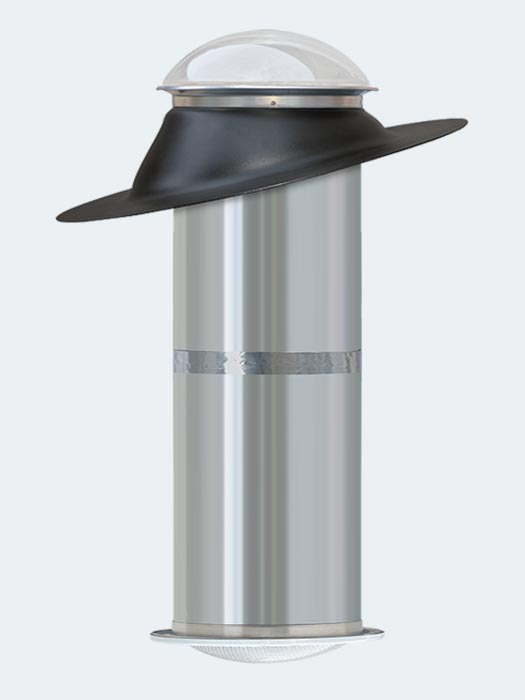

Natural Light 18 inch pitched roof tubular skylight model

18" Kit

Model #:	18KPF
Coverage:	up to 500 sf
Wattage:	up to 1,000 sf
Kit Height:	4 feet
Max Length:	20 feet
Roof Slope:	2:12 & up
Colors:	⬤⬤

EASY INSTALLATION: Natural Light tubular skylights installation requires no structural changes or wiring. Only basic DIY skills needed and can be completed in about 2 hours.

Get An Install

Installation Cutaway

Installation procedures vary between the pitched roof, flat roof and curb mount models. Pictured is a typical pitched roof installation showing all components and hardware. Please follow the detailed instructions for your model and roof type.
